PCoIP方案将所有原本置于终端的运算与储存设备软硬件(包括目前使用的个人计算机、高效能工作站和服务器),都移至安全的场所严加防护,PCoIP只传送像素(Pixels)至每位终端使用者的PCoIP Zero Client终端机,不传送资料,所以资料仍然安全地存放于您的企业资料中心。
PCoIP Zero Client终端机仅简单地接收和解码经过加密的影像讯息,不会储存任何应用资料,因此能免除病毒攻击的危险。PCoIP连线使用高规格的AES 256和NSA Suite B Ciphers加密法,另外还提供USB安全授权与识别机制,包括搭配使用智慧卡(Smart Card)的单一登入(Single Sign-On)功能。
PCoIP远端工作站主机卡同时兼顾「CPU负载情况」、「传输负载情况」与「使用者体验」三项要素并加以优化,其他以软件编译码方式来进行远端处理的方案,在偏重任一项要素时,只能舍弃另两项要素。
不论您是3D游戏设计师、动画模型创作者、电影后制编辑师、或是产品设计机构工作师,您的工作站计算机或許配备了NVIDIA Quadro 工作站显示卡或是其他高效能显示卡,当企业工作环境转至远端桌面系统时,您或許希望能继续使用您的高效能显示卡,来获得高度的影像编辑操控性,并持续享有理想的工作效能与逼真的影像质量
PCoIP远端工作站主机卡 是市面上少数可以让您继续使用您目前的显示卡,以继续拥有快速的应用软件效能与最高工作站影像质量的远端硬件处理方案
型号 | TERA1202系列 (注) | TERA2240系列 | TERA2220系列 |
屏幕支援数目 | 2 | 4 | 2 |
晶片 | TERA1202 | TERA2240 | TERA2220 |
汇流排 | Low Profile | ATX | Low Profile |
板卡实体尺寸 | 6.891 (高) X 16.764 (长) 公分, 单槽厚度 | 11.115 (高) X 16.764 (长) 公分, 单槽厚度 | 6.891 (高) X 16.764 (长) 公分, 单槽厚度 |
总线 | PCI Express x1(与任何PCIe x1, x4, x8, x16插槽相容) | ||
影像效能 | 100 Mpps | 250 Mpps | 130 Mpps |
最高分辨率支持 | 两个1920x1200 | 两个3840x2160 (仅DP机种支持)* 两个2560x1600 四个1920x1200 |
单个3840x2160 (仅DP机种支持)* 单个2560x1600 两个1920x1200 |
最高应用程序画面更新率(与PCoIP Zero Client连线) | 60 fps | 60 fps | 60 fps |
图像输入插座(连接至绘图卡输出插头) | 单个DMS-59(转接双DVI) | 四个mini-DisplayPort | 两个mini-DisplayPort |
主存 | 128 MB XDR | 512 MB DDR3(支援ECC) | |
平均消耗电力 | 13瓦特 | 13瓦特 | 13瓦特 |
加密协议支援 | AES-128/Salsa256 Suite B Ciphers(工作站) | AES-128/AES-256 Suite B Ciphers(工作站) | |
建议搭配Zero Client机型(以享有完整功能) | TERA1100 | TERA2140 | TERA2321或TERA2140 |

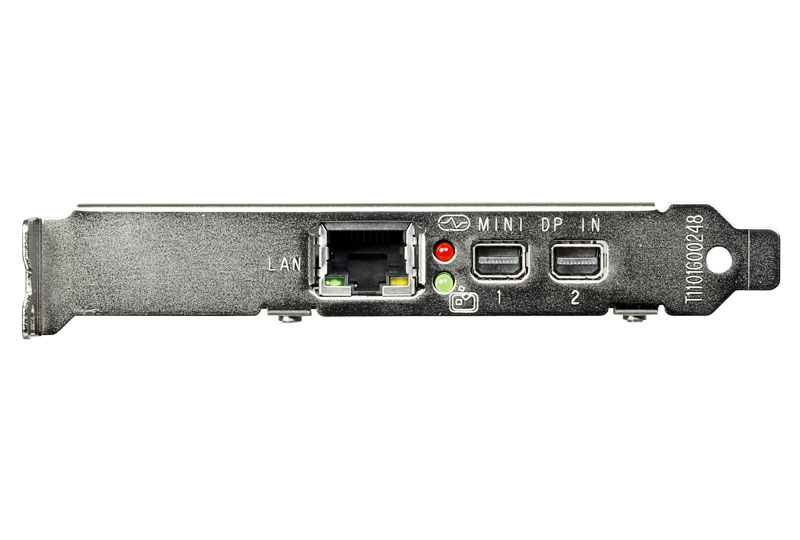

插头/插座 | 59-pin DMS-59插座(支援双DVI-D) | 四个mini-DisplayPort插座 | 两个mini-DisplayPort插座 |
RJ45或光纤网络线插座 | RJ45或光纤网络线插座 | RJ45或光纤网络线插座 | |
电源按钮线插座(供远程电源管理使用) | 电源按钮线插座(供远程电源管理使用) | 电源按钮线插座(供远程电源管理使用) | |
独立模式电源插座 | |||
散热系统 | 仅占单槽厚度的静音散热片 | ||
操作系统支援 | 操作系统完全独立 | ||
系统需求 | 配备一个x1/x4/x8/x16槽的PCI Express相容主板(TERA2240需全高度插槽;TERA1202/2220可使用全高度或半高度插槽) | ||
配备一或二张绘图卡的电脑或工作站 | |||
如使用2560x1600分辨率,绘图卡输出必需为DisplayPort插座(不支援Dual-link DVI) | |||
10/100/1000 Mbps乙太区域网络或100/1000 Mbps光纤交换器或路由器 | |||
产品配件内容 | PCoIP远程工作站插卡 | PCoIP远程工作站插卡 | PCoIP远程工作站插卡 |
单条Dual DVI to DMS-59线 | 一至四条DVI to mini-DisplayPort线(选配) | 一或两条DVI to mini-DisplayPort线(选配) | |
网络线x 1(选配) | 一至四条DisplayPort to mini-DisplayPort线(选配) | 一或两条DisplayPort to mini-DisplayPort线(选配) | |
电源按钮线 x 1(选配,供远程电源管理使用) | 一至四条mini-DisplayPort to mini-DisplayPort线(选配) | 一或两条mini-DisplayPort to mini-DisplayPort线(选配) | |
Low Profile短铁片 x 1 | 网络线x 1(选配) | 网络线x 1(选配) | |
快速安装手册 | 电源按钮线 x 1(选配,供远程电源管理使用) | 电源按钮线 x 1(选配,供远程电源管理使用) | |
快速安装手册 | Low Profile短铁片 x 1 | ||
快速安装手册 |
注 : 前代产品
* 使用韧体20.01或更高版本的PCoIP DisplayPort机种Zero Client,可在与韧体20.01或更高版本的远端工作站插卡连线型态下,支持4K UHD超高分辨率屏幕。
TERA2220 PCoIP Host Card | ||||
---|---|---|---|---|
操作系统 | 语言 | 版本 | 描述 | |
工具程式 | ||||
English | 1.10.8 ( 2017/1/16 ) | 支持型号 :TERA2 and TERA1 Host Cards and Zero Clients PCoIP Management Console (PCoIPMC) enables administrators to centrally manage a PCoIP deployment. more 档案大小 : [ 501553 KB ] | ||
驱动程式及工具程式 | ||||
CentOS7.7,Linux | English | 17.05.0 ( 2020/6/12 ) | 支持型号 :TERA2 Remote Workstation cards This is an optional host software driver that provides features such as Local Cursor, which can greatly enhance user experience in a WAN environment. more 档案大小 : [ 3225 KB ] | |
10 8 7 64bit | English | 17.05.0 ( 2020/6/12 ) | 支持型号 :TERA2 Remote Workstation cards The PCoIP host software for Windows is a collection of drivers and applications that let Windows OS interact with the PCoIP host processor installed in the host PC/workstation and a PCoIP zero client connected to the host. more 档案大小 : [ 5119 KB ] | |
10 8 7 64bit | English | 4.3.1 ( 2016/12/15 ) | 支持型号 :TERA2 host cards The PCoIP host software for Windows is a collection of drivers and applications that let Windows OS interact with the PCoIP host processor installed in the host PC/workstation and a PCoIP zero client connected to the host. more 档案大小 : [ 5276 KB ] | |
RHEL7.1,CentOS6.6,SLED11 | English | 4.7.0 ( 2015/9/18 ) | 支持型号 :TERA2 host cards The PCoIP host software for Linux is a collection of drivers and applications that let Linux OS interact with the PCoIP host processor installed in the host PC/workstation and a PCoIP zero client connected to the host. more 档案大小 : [ 94461 KB ] | |
应用程式 | ||||
XP Vista 7 8 | English | 1.10 ( 2017/1/5 ) | 支持型号 :TERA2 PCoIP host cards Teradici PCoIP Software Clients are applications for Windows computers that allow users to establish a direct PCoIP session with a remote workstation containing a TERA2 host Card more 档案大小 : [ 26394 KB ] | |
Mac | English | 1.10 ( 2017/1/5 ) | 支持型号 :TERA2 PCoIP host cards Teradici PCoIP Software Clients are applications for MAC computers that allow users to establish a direct PCoIP session with a remote workstation containing a TERA2 host Card more 档案大小 : [ 24041 KB ] | |
Firmware | ||||
Multilanguage | 17.05.3 ( 2020/8/28 ) | 支持型号 :TERA2 Host Cards Remote Workstation Card Firmware 17.05.3 is a firmware release replacing firmware 4.9.0 for Remote Workstation Cards (not PCoIP Zero Clients). This release is a maintenance release with bug fixes and security updates over release 4.9.0. If remote workstation cards have firmware 4.2.0 or earlier installed, then you will need to install firmware 4.6.0 in order to upgrade to 17.05.3. 档案大小 : [ 10279 KB ] | ||
Multilanguage | 5.1.0 ( 2019/3/7 ) | 支持型号 :TERA2 Host Cards only This firmware is speciᴏc to TERA2 Remote Workstation Cards and cannot be used on Zero Clients. If zero clients or host cards have firmware 4.2.0 or earlier installed, then you will need to install firmware 4.6.0 in order to upgrade to 5.1.0. more 档案大小 : [ 10247 KB ] | ||
Multilanguage | 4.9.0 ( 2016/12/1 ) | 支持型号 :TERA2 Host Cards only It is highly recommended that release 4.9.0 should be installed on the TERA2 Host. This firmware is speciᴏc to TERA2 Remote Workstation Cards and cannot be used on Zero Clients. If zero clients or host cards have firmware 4.2.0 or earlier installed, then you will need to install firmware 4.6.0 in order to upgrade to 4.9.0. more 档案大小 : [ 41686 KB ] | ||
Multilanguage | 4.6.0 ( 2014/10/7 ) | 支持型号 :TERA2 Host Cards and Zero Clients This is a major release 4.6.0 installed on both the TERA2 Host and Zero Client. more 档案大小 : [ 19340 KB ] |
TERA2220 PCoIP Host Card | |||
---|---|---|---|
语言 | 版本 | 描述 | |
User's Manual | |||
English | Issue 13 ( 2016/5/31 ) | This Administrators Guide helps you through the process to set up and configure your TERA2 products. 档案大小 : [ 10309 KB ] | |
Quick Guide | |||
Multilanguage | A ( 2012/11/13 ) | 支持型号 :TERA2 Host Cards This Quick Start Guide will help you configure your TERA2 host card. 档案大小 : [ 4218 KB ] | |
Multilanguage | A ( 2016/3/2 ) | 支持型号 :TERA2 Zero Clients This Quick Start Guide will help you configure your TERA2 zero client. 档案大小 : [ 2940 KB ] | |
DM | |||
(繁体中⽂) | 2015 ( 2015/5/4 ) | PCoIP產品型錄 档案大小 : [ 1757 KB ] | |
English | 2017 ( 2017/5/12 ) | PCoIP product brochure 档案大小 : [ 3803 KB ] | |
Deployment Guide | |||
English | 2.6 ( 2016/11/30 ) | 支持型号 :PCoIP host/client PCoIP Protocol Virtual Network Design Checklist more 档案大小 : [ 536 KB ] | |
English | Issue 3 ( 2013/1/31 ) | Using PCoIP Host cards with VMware View more 档案大小 : [ 1405 KB ] |
