WinFast GS2050T 可支持多达 4 个无风扇双插槽 GPU, 如 NVIDIA A40/A16 或 4 个配备主动型风扇的 NVIDIA RTX A6000/A4000, 发挥多 GPU的计算性能, 符合 AI 深度学习/ 3D 绘图/模拟等应用的需求。
PCIe 5.0 的 I/O 带宽是 PCIe 4.0 的两倍。您可以使用 128 个 I/O 通道将连接 HPC 集群的网络带宽翻倍，并满足数据传输的巨大需求。对于其他应用程序需求，以及在虚拟化环境中，您可以更快地连接到 GPU 加速器、NVMe 硬盘等。

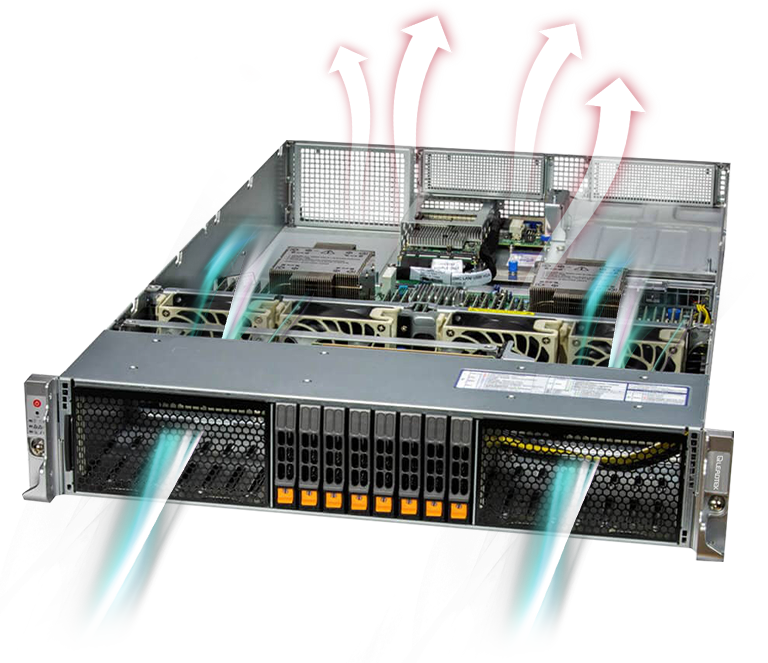

搭配 4 个可控制转速的高耐用与高效能的风扇，不但可节省电力，并且让服务器可以 7 天 24 小时不间断地稳定工作
系统内配置 BMC(Baseboard Management Controller) 芯片,可随时监控系统健康状态
处理器 |
|
| 中央处理器 | |
| Dual Socket E (LGA-4677) | |
| 5th/4th Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 350W | |
| Up to 64 Cores | |
系统内存 |
|
| 内存容量 | |
| 32 DIMM slots | |
| Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM | |
| Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM | |
| 内存类型 | 4800/5600MHz ECC DDR5 RDIMM |
内置设备 |
|
| 芯片组 | Intel® C741 chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| 网络 | Dual Port 10GbE from Intel X550 or Broadcom BCM57416 |
| IPMI 智能平台管理界面 | |
| Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| 显示芯片 | ASPEED AST2600 BMC |
输入 / 输出 |
|
| SATA | 8 SATA3 (6Gbps) ports |
| LAN | |
| 2 RJ45 10GBase-T LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 2.0 ports (rear) |
| Video | 1 VGA Connector |
外观形态 |
|
| 2U Rackmountable with Rail kit | |
尺寸与重量 |
|
| 高度 | 3.5"(88.9mm) |
| 宽度 | 17.2"(437mm) |
| 深度 | 29.9"(760mm) |
| 重量 | |
| Net Weight: 40 lbs (18.2 kg) | |
| Gross Weight: 66 lbs (30 kg) | |
硬盘槽 / 存储 |
|

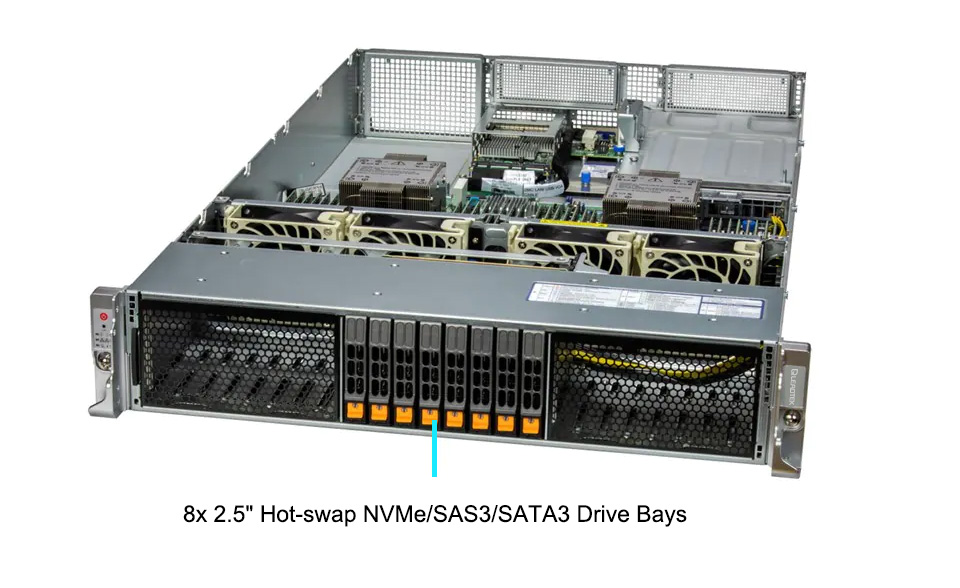

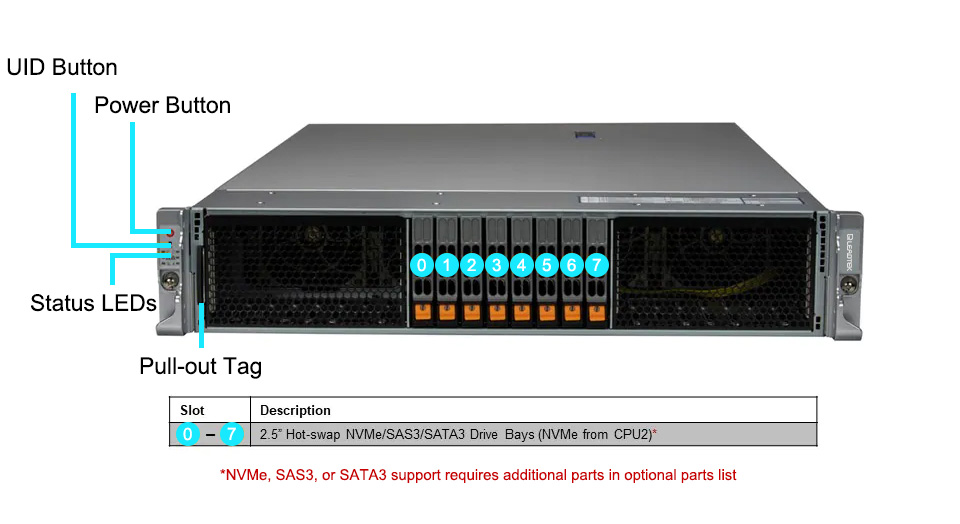

| 热插拔 | 8x 2.5" hot-swap NVMe/SATA/SAS drive bays |
扩展插槽 |
|
| PCI-Express | |
| 4 PCI-E 5.0 x16 slots | |
| 1 AIOM/OCP 3.0 NIC slot | |
系统散热 |
|
| 风扇 | 4x 8cm Heavy duty fans with optimal fan speed control |
电源供应器 |
|
| 电源 | 2x 1200W 1U Redundant Power Supplies with PMBus (Optional 2600W Redundant power supply) |
| AC Input | 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) |
| +12V | Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) |
| Output Type | Backplanes (gold finger) |
支持操作系统 |
|
| OS | |
| Windows: WS2022 | |
| RedHat: RHEL 8.7/9.0 | |
| VMWare: ESXi 8.0/7.0U3 | |
操作环境 |
|
| RoHS | 环境规格 |
| Environmental Spec. | |
| Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| WinFast GS2050T | ||||
|---|---|---|---|---|
| 操作系统 | 语言 | 版本 | 描述 |  |
| 音效卡驱动程式 | ||||
 10 11 | English | 9500.1 ( 2023/7/3 ) | Realtek Audio 档案大小 : [ 40645 KB ] |  |
10 11 | English | 1.41.291.0 ( 2023/7/3 ) | Realtek Audio Console UI 档案大小 : [ 11230 KB ] | |
| 显示芯片驱动程式 | ||||
10 11 | English | 1.13/ 1.14 ( 2023/7/3 ) | ASPEED Graphic 2500/2600 档案大小 : [ 54932 KB ] | |
| 网卡驱动程式 | ||||
10 11 | English | 222.0.2.1 ( 2023/7/3 ) | Broadcom 10G 档案大小 : [ 5869 KB ] | |
| INF | ||||
10 11 | English | 10.1.19485.8386 ( 2023/7/3 ) | Intel INF 档案大小 : [ 3899 KB ] | |
| MS.Net_Framework | ||||
10 11 | English | 4.8 ( 2023/7/3 ) | Microsoft .Net Framework 4.8 档案大小 : [ 114531 KB ] | |
10 11 | English | 3.5 ( 2023/7/3 ) | Microsoft .Net Framework 3.5 Redistributable for Windows 档案大小 : [ 201720 KB ] | |
10 11 | English | 6.0.302 ( 2023/7/3 ) | Microsoft .Net SDK 档案大小 : [ 200655 KB ] | |
| Intel VROC | ||||
10 11 | English | 8.0.0.4035 ( 2023/7/3 ) | Intel VROC 档案大小 : [ 29194 KB ] | |
| Intel QAT | ||||
10 11 | English | 2.0.3-0004 ( 2023/7/3 ) | Intel QAT 档案大小 : [ 38284 KB ] | |
| WinFast GS2050T | |||
|---|---|---|---|
| 语言 | 版本 | 描述 | |
| User's Manual | |||
| English | 1.0 ( 2023/12/12 ) | User manual 档案大小 : [ 50197 KB ] | |
