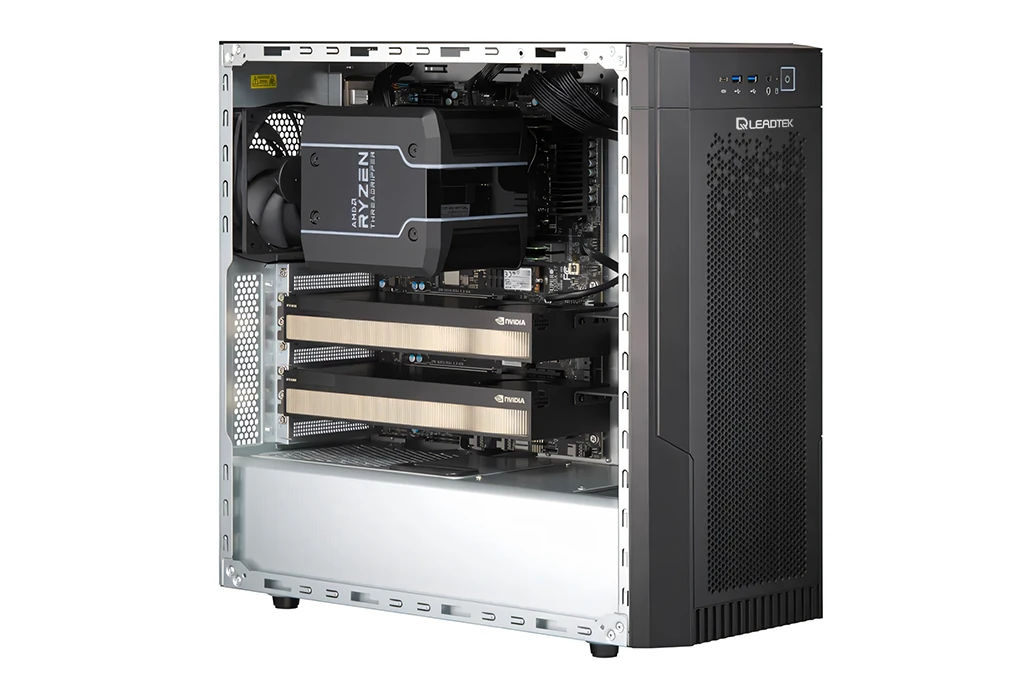

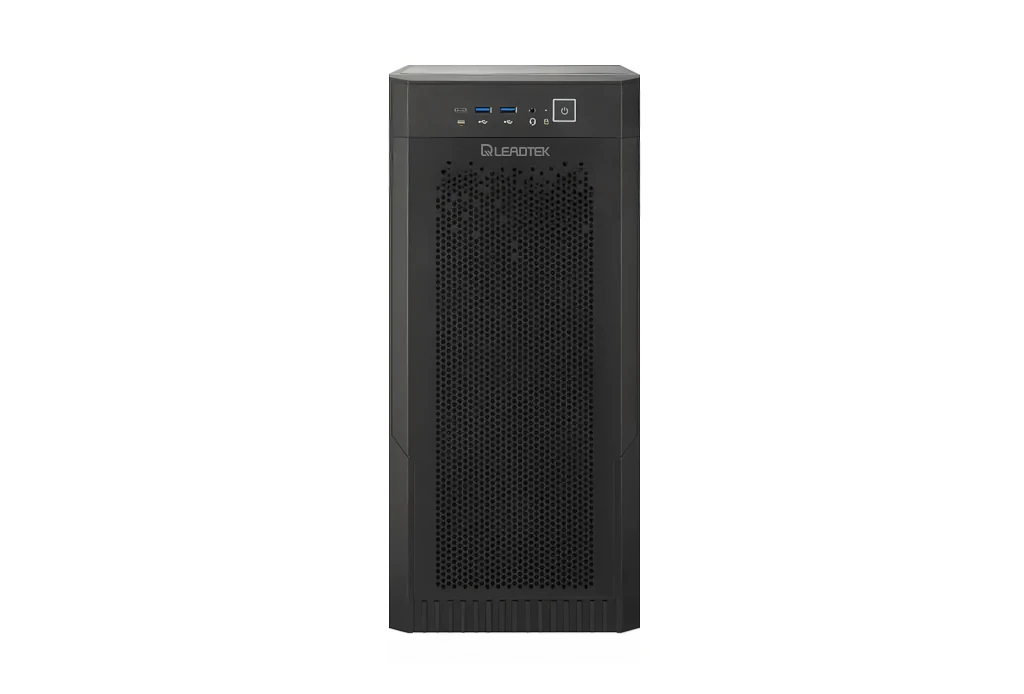

WinFast WS855

  • Mid-end Workstation
  • High Performance Computing
  • Ideal for 3D Simulation and Rendering, Digital Content Creation, AI/Deep Learning

Key Features

  • AMD Ryzen™ Threadripper™ PRO 9000WX/
    7000WX series and Ryzen™ Threadripper™ 9000/7000 series up to 350W TDP CPU
  • 4 DIMM slots, up to 512GB 6400MHz ECC DDR5 RDIMM
  • 2 PCIe 5.0 x16 slots
    2 PCIe 5.0 x8 slots
    2 M.2 PCIe 4.0 x4 NVMe slot
    1 MCIO connector (PCIe 4.0 x8) to support 2 NVMe PCIe drives
  • Support  2 triple-width or double-width GPU
  • 2 RJ45 10GbE ports
    1 RJ45 1GbE for IPMI dedicated port
  • 6 internal fixed 2.5" drive bays
    2 internal fixed 3.5" drive bays
  • 1x 1300W Platinum  Level (90%) power supply
    (Optional 2000W Power supply)

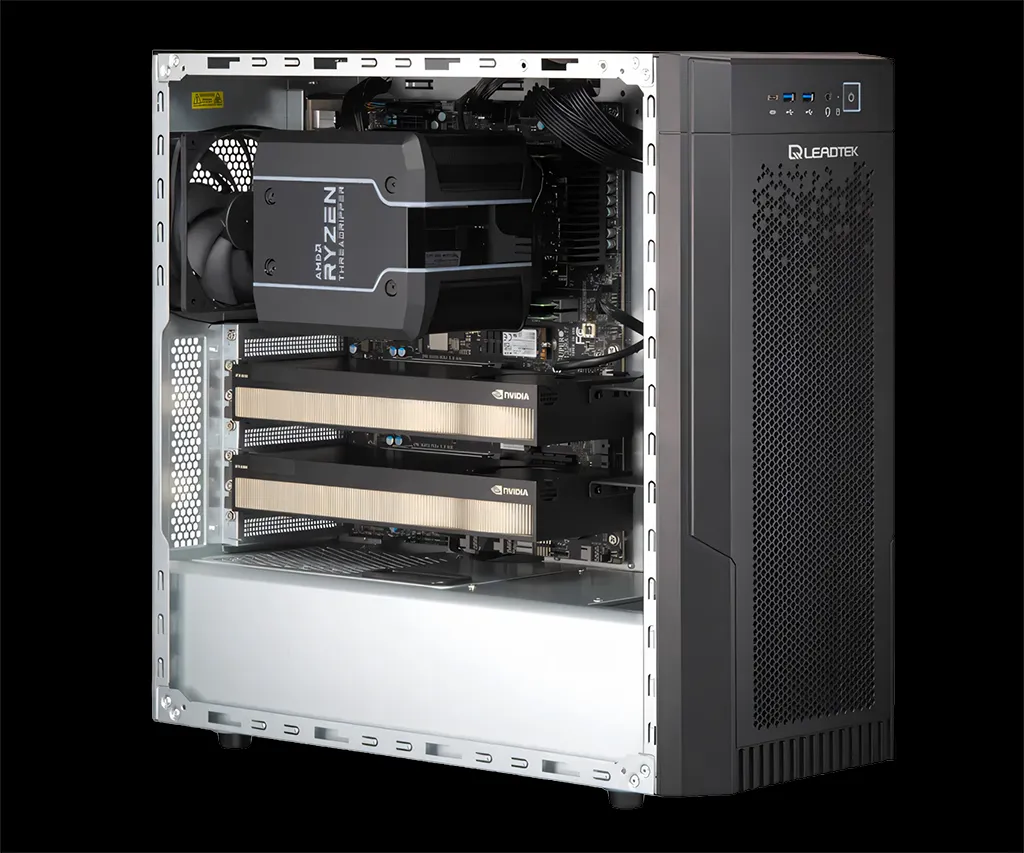

Multiple GPU support

WinFast WS855 features a powerful GPU architecture that supports up to 2 triple-width or 2 double-width GPUs in a workstation, including 2pcs NVIDIA® RTX PRO™ 6000 Blackwell Max-Q Workstation Edition/ RTX 6000/5000/4500 Ada Generation, or 1pcs RTX PRO™ 6000 Blackwell Workstation Edition, enable scaling of performance in order to meet the demands of AI, high-performance computing, and 3D rendering applications.

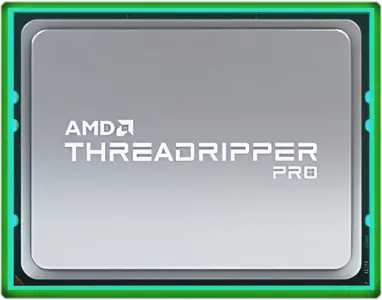

AMD Ryzen™ Threadripper™ PRO Processors

AMD THREADRIPPER PRO
96 Powerful Cores
Based on 4nm process technology, delivering an unmatched CPU core density for professional workloads.
PCIe 5.0
The only professional workstation processor to support PCIe® 5.0, which delivers twice the I/O performance over PCIe 4.0.
128 Lanes
Supports 128 PCIe® 5.0 lanes enabling a variety of advanced configurations leveraging next-gen CPUs and storage devices.
AMD Memory Guard
Delivers real time encryption of system memory to help defend against physical attacks should your laptop be lost or stolen.

PCIe® 5.0 doubles the data transfer speed over the previous generation

PCIe 5.0 delivers double the I/O performance over PCIe 4.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

SATA vs NVMe

Up to 5.3X performance than SATA

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Optional software

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Leadtek AI Management Software

Leadtek GPU Docker Management System (GDMS) is a Docker-based GPU resource allocation and management software. GDMS uses an intuitive and graphical user interface to centrally manage AI and big data projects and development resources for universities/schools, research institutions, and corporations.

Processor

CPU
  • Single Socket sTR5 (LGA-4844)
  • AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and Ryzen™ Threadripper™ 9000/7000 Series Processors
  • Support CPU up to 350W TDP
  • Up to 96cores

System Memory

Memory Capacity
  • 4 DIMM slots/4 Channels
  • Up to 512GB
Memory Type 6400MHz ECC DDR5 RDIMM

On-Board Devices

Chipset TRX50
SATA 4 SATA3 (6Gbps) ; RAID 0/1/10 support
Network
  • Dual LAN with 10Gb Broadcom BCM57416
  • Single LAN with ASPEED AST2600, Dedicated LAN for IPMI

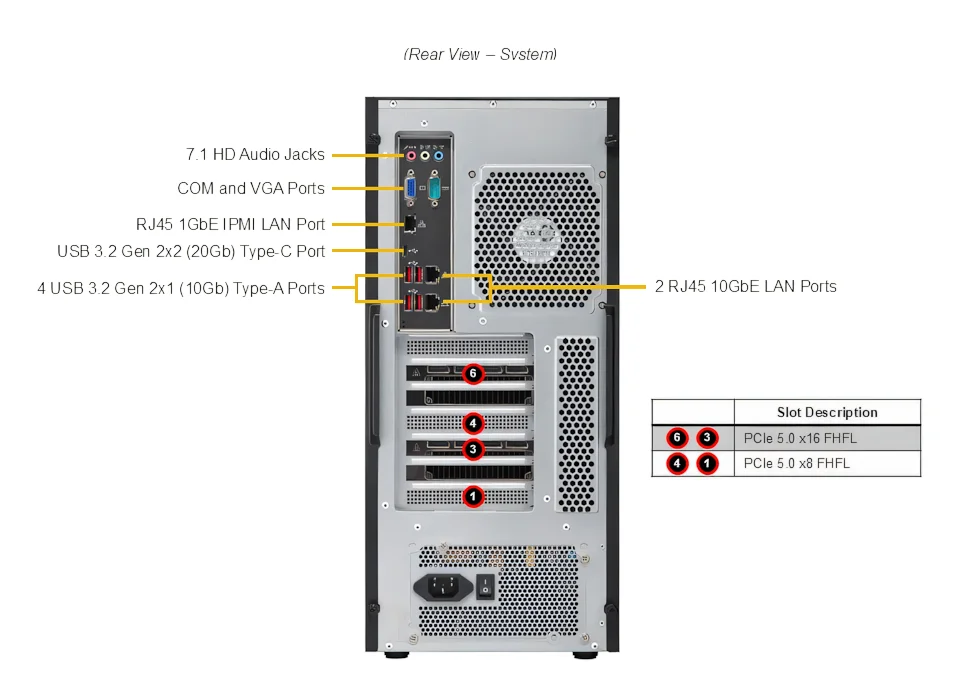

Input / Output

SATA 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10 GBASE-T LAN ports (Broadcom® BCM57416)
  • 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600)

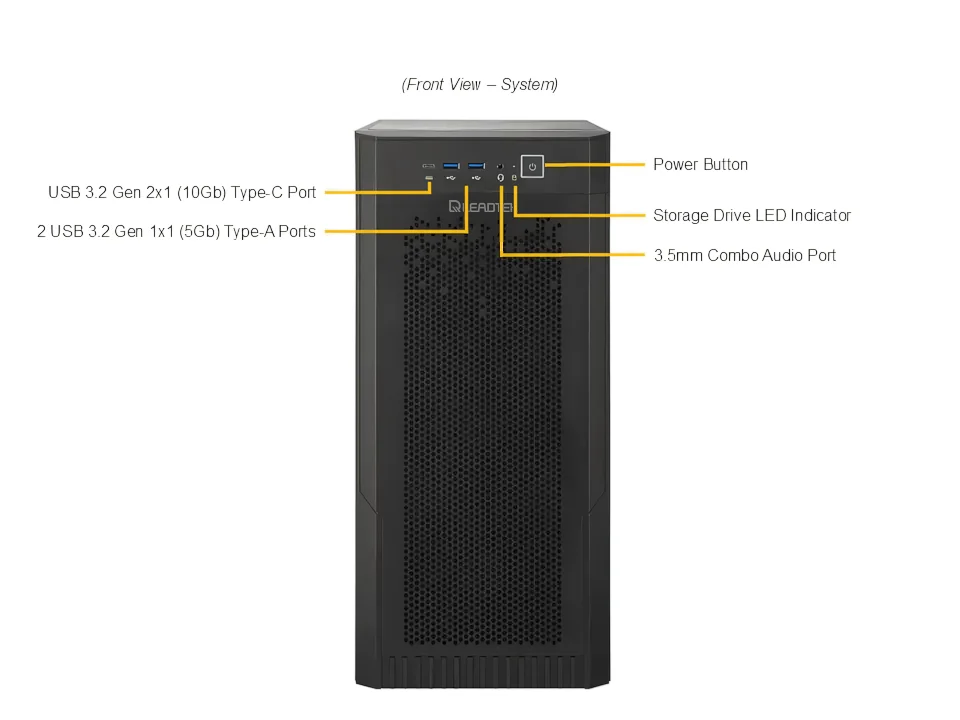

USB Front:
  • 2 USB 3.2 Gen1 Type-A ports
  • 1 USB 3.2 Gen2 Type-C port
Rear:
  • 4 USB 3.2 Gen2 Type-A ports
  • 1 USB 3.2 Gen2 Type-C port
Audio 3 Phone Jack, 7.1 HD Audio
Video 1x VGA port
Serial 1 COM port

Form Factor

Mid Tower

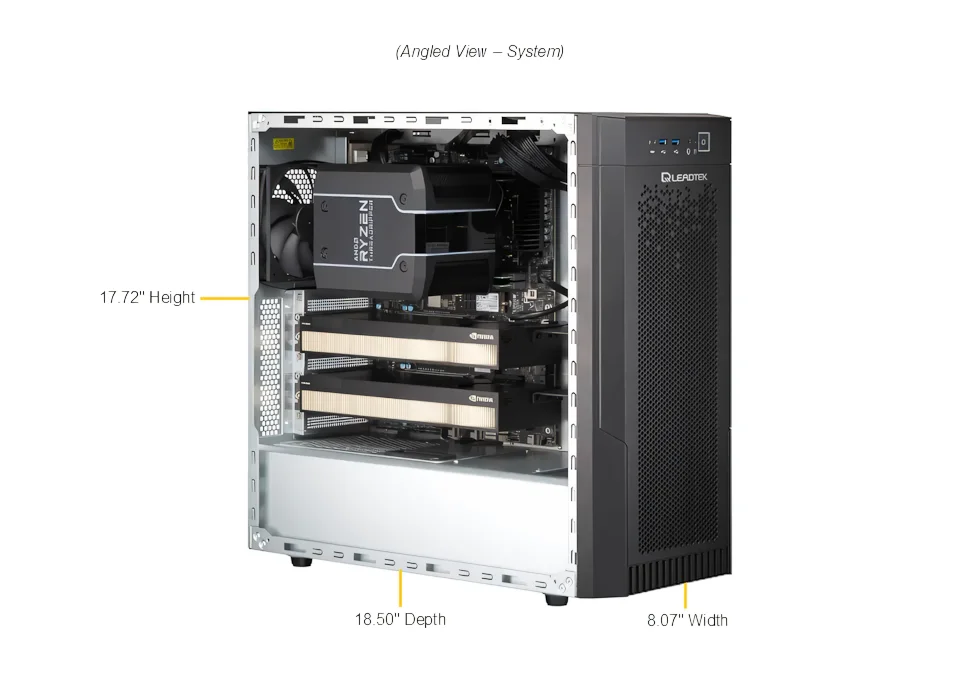

Dimensions

Height 17.72" (450 mm)
Width 8.07" (205 mm)
Depth 18.5" (470 mm)
Weight
  • Gross Weight: 19.2 lbs (8.7 kg)
  • Net Weight: 14.1 lbs (6.4 kg)

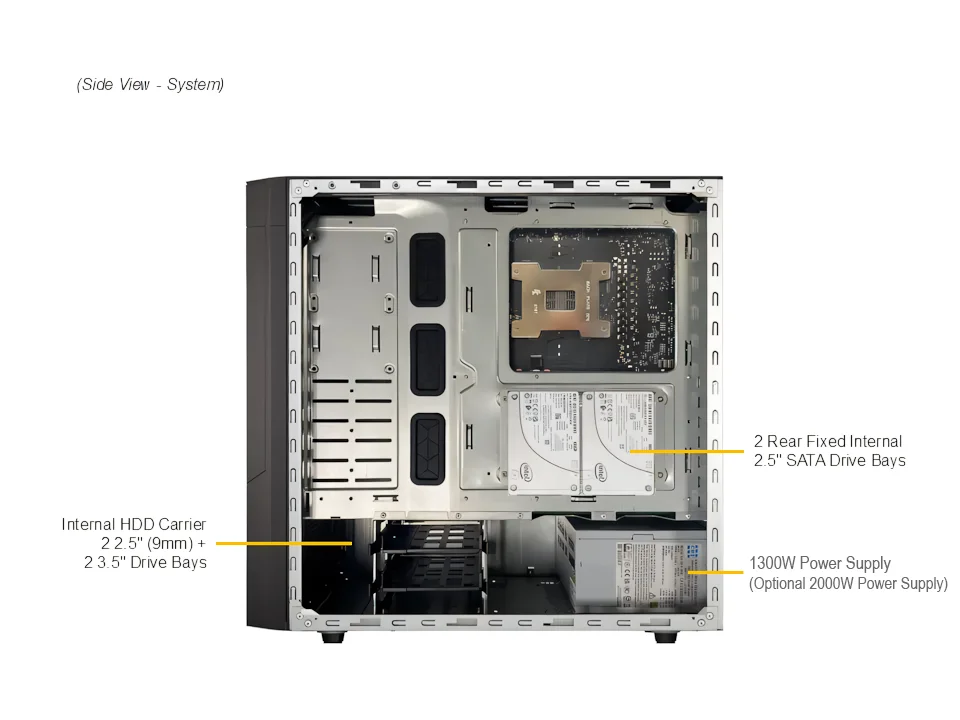

Drive Bays / Storage

  • 6 internal fixed 2.5"" SATA drive bays
  • 2 internal fixed 3.5"" SATA drive bays

Expansion Slots

PCI-Express
  • 2 PCIe 5.0 x16 slots
  • 2 PCIe 5.0 x8 slots
M.2/U.2
  • M.2 Interface: 2 PCI-E 4.0 x4
    M.2 Form Factor: 22110/2280
    M.2 Key: M-Key (RAID 0,1 support)
  • 1 MCIO connector (PCIe 4.0 x8) to support 2 NVMe PCIe drives

System Cooling

Fans
  • Up to 1 Rear Exhaust Fan 120mm Fan(s)
  • Up to 3 Front Intake 120mm Fan(s)

Power Supply

1x 1300W Platinum Level (92%) power supply
Input 1300W: 100-240Vac / 50-60Hz
+12V Max: 108.33A / Min: 0A (100Vac-240Vac)
5V SB Max: 3A / Min: 0A
Certification Platinum Level Certified
(Optional) 1x 2000W Platinum Level (92%) power supply
Input 1200W: 100-115Vac / 50-60Hz
1500W: 115-200Vac / 50-60Hz
2000W: 200-264Vac / 50-60Hz
+12V Max: 100A / Min: 0.1A (100Vac-115Vac)
Max: 125A / Min: 0.1A (115Vac-120Vac)
Max: 166.6A / Min: 0.1A (200Vac-264Vac)
5V SB Max: 4A / Min: 0A
Certification Platinum Level Certified

OS Compatibility

  • Windows 10/11
  • RHEL 9.3
  • Ubuntu 24.04 LTS
  • VMWare ESXi 8.0U2

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
