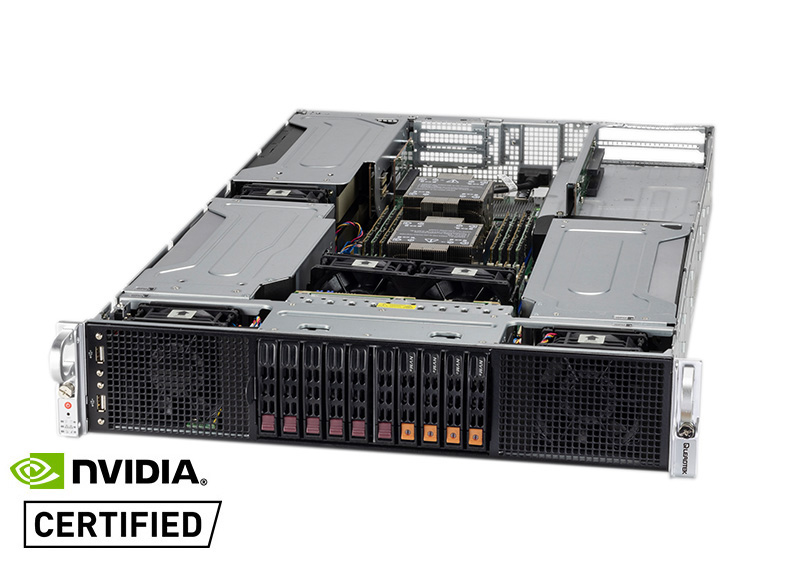

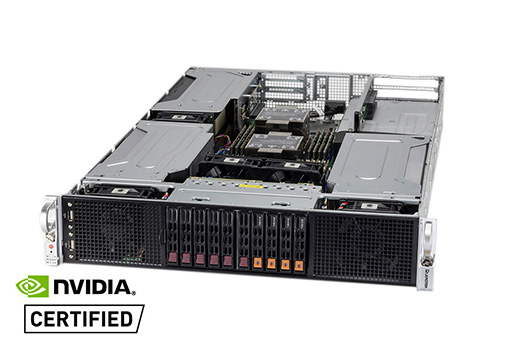

WinFast GS2040T 可支持多达 6 个无风扇双宽度 GPU, 如NVIDIA A100/A40/A30/A10 或 4 个内建主动型风扇的 NVIDIA RTX A6000/A5000, 发挥多 GPU的运算性能, 符合 AI 深度学习/3D 绘图/模拟等应用需求。
PCIe 4.0 的 I/O 性能是 PCIe 3.0 的两倍。
您可以使用 128 个 I/O 通道将连接 HPC 集群的网络频宽翻倍，并满足巨大频宽的需求。对于其他应用程序需求，以及在虚拟化环境中，您可以更快地连接到 GPU 加速器、NVMe 硬盘。

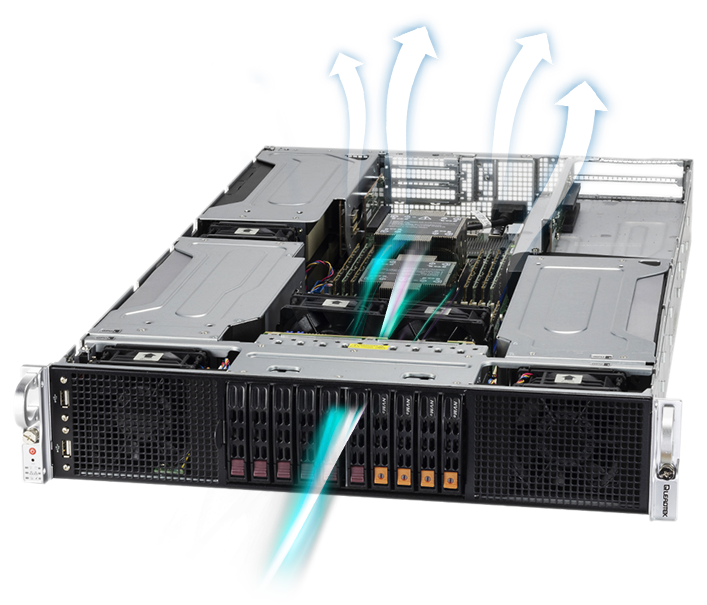

高效率散热系统 - 搭配 5 个可控制转速的高耐用与高性能风扇，不但可节省电力，并让服务器可以 7 天 24 小时不间断地稳定工作
系统内建 BMC(Baseboard Management Controller) 芯片,可随时回报系统健康状态

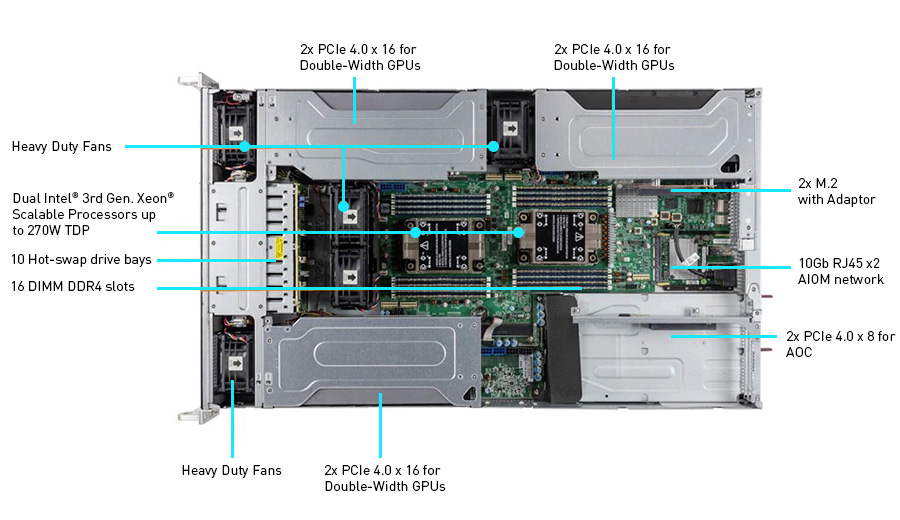

处理器 |
|
| 中央处理器 | |
| Dual Socket P+ (LGA-4189) | |
| 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | |
| Up to 40 Cores | |
系统内存 |
|
| 内存容量 | |
| 16 DIMM slots | |
| Up to 4TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM | |
| Supports Intel® Optane™ DCPMM | |
| 内容种类 | 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM |
内建装置 |
|
| 芯片组 | Intel® C621A chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| 网络 | Dual Port 10GbE from Intel X710 |
| IPMI 智能平台管理接口 | |
| Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| 显示芯片 | ASPEED AST2600 BMC |

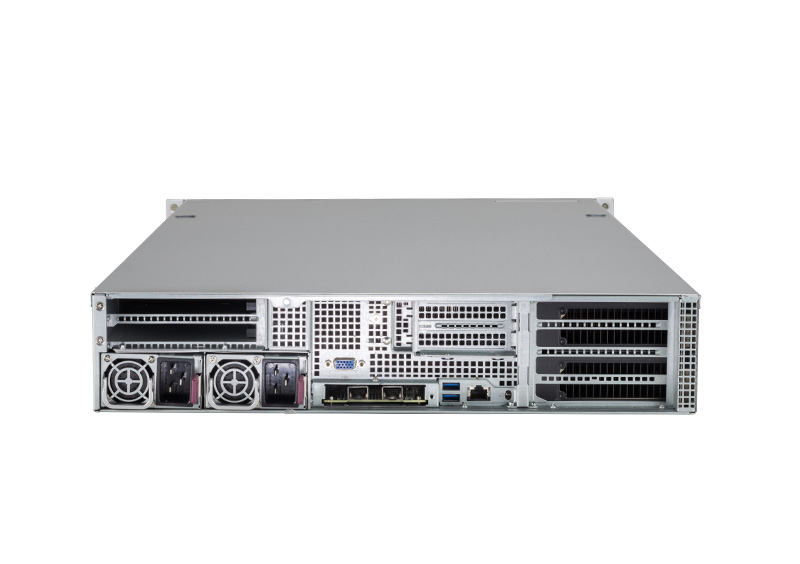

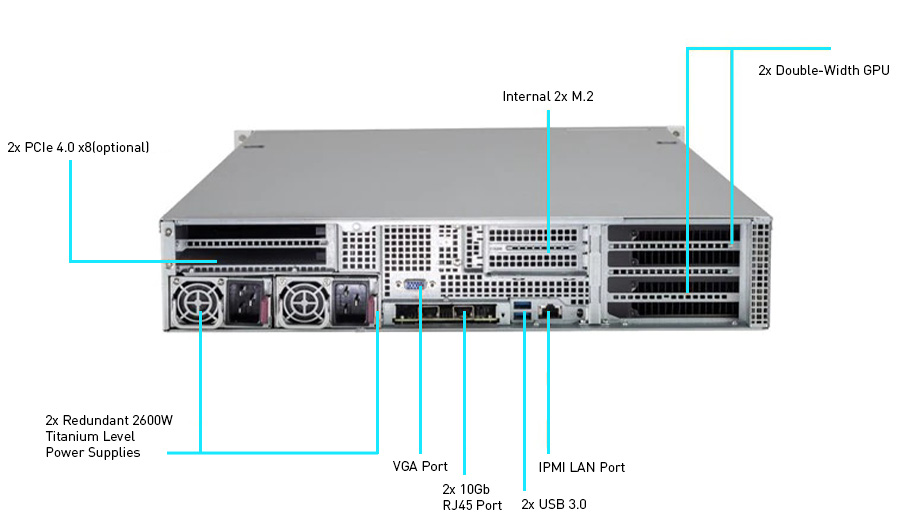

输入 / 输出 |
|
| SATA | 8 SATA3 (6Gbps) ports |
| LAN | |
| 2 RJ45 10GBase-T LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | |
| USB | |
| 2 USB 3.0 ports (rear) | |
| 2 USB 2.0 ports (front) | |
| Video | 1 VGA Connector |
外观形态 |
|

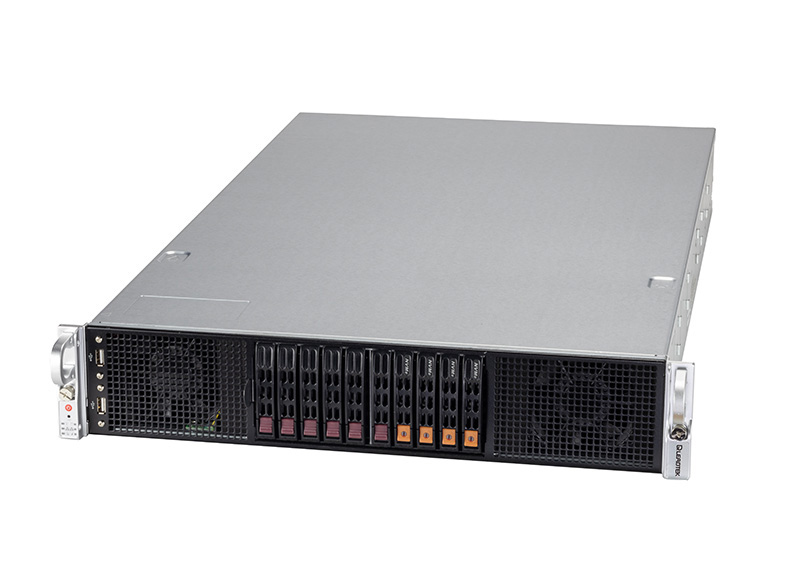

| 2U Rackmountable with Rail kit | |
尺寸与重量 |
|
| 高度 | 3.46"(88mm) |
| 宽度 | 17.35"(440.7mm) |
| 深度 | 30.18"(766.8mm) |
| 重量 | |
| Net Weight: 39.5 lbs (17.9 kg) | |
| Gross Weight: 54 lbs (24.5 kg) | |
磁盘槽 / 存储 |
|

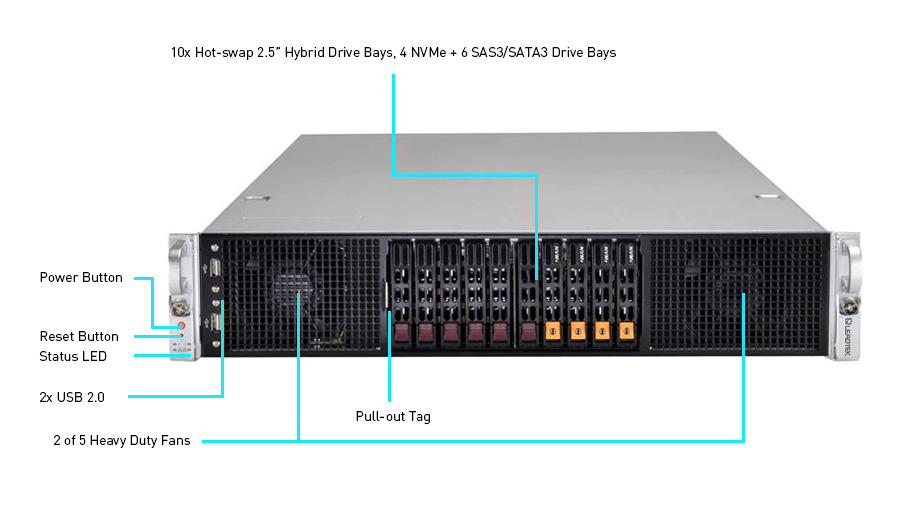

| 热插拔 | 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated) |
扩充插槽 |
|
| PCI-Express | |
| 6 PCI-E 4.0 x16 slots | |
| 2 PCI-E 4.0 x8 slots | |
系统散热 |
|
| 风扇 | 5x 8cm Heavy duty fans with optimal fan speed control |
电源供应器 |
|
| 电源 | 2600W 1U Redundant Power Supplies with PMBus |
| AC Input | 2600W: 200-240Vac / 15A Max |
| DC Input | 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz |
| +12V | Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) |
支持操作系统 |
|
| OS | |
| Red Hat Enterprise Linux 8.4 | |
| Windows Server 2022 | |
| Windows Server 2019 | |
| VMware ESXi 7.0U2 | |
| Citrix Hypervisor 8.2 | |
作业环境 |
|
| RoHS | 环境规格 |
| Environmental Spec. | |
| Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| WinFast GS2040T | ||||
|---|---|---|---|---|
| 操作系统 | 语言 | 版本 | 描述 |  |
| 音效卡驱动程式 | ||||
 10 64bit | Multilanguage | 9279 ( 2022/1/24 ) | Realtek Audio driver 档案大小 : [ 35420 KB ] |  |
10 64bit | Multilanguage | 1.30.259.0 ( 2022/1/24 ) | Audio Console UI 档案大小 : [ 10766 KB ] | |
| 显示芯片驱动程式 | ||||
10 64bit | Multilanguage | 1.10/1.12 ( 2022/1/24 ) | Aspeed AST2400/AST2500 Graphic Driver 档案大小 : [ 61376 KB ] | |
| 网卡驱动程式 | ||||
10 64bit | Multilanguage | 26.2 ( 2022/1/24 ) | LAN driver 档案大小 : [ 693635 KB ] | |
10 64bit | Multilanguage | 3.1.3 ( 2022/1/24 ) | Marvell LAN driver 档案大小 : [ 907 KB ] | |
| 芯片组 驱动程式 | ||||
10 64bit | Multilanguage | 10.1.18807.8279 ( 2022/1/24 ) | Chipset driver 档案大小 : [ 3325 KB ] | |
| Intel ME | ||||
10 64bit | Multilanguage | 15.0.35.1951v2 ( 2022/1/24 ) | Intel ME driver 档案大小 : [ 854872 KB ] | |
| MS.Net_Framework | ||||
10 64bit | Multilanguage | 3.5 ( 2022/1/24 ) | Microsoft .Net Framework 3.5 Redistributable for Windows 档案大小 : [ 201720 KB ] | |
10 64bit | Multilanguage | 4.8 ( 2022/1/24 ) | Microsoft .Net Framework 4.8 档案大小 : [ 114531 KB ] | |
| Intel VROC | ||||
10 64bit | Multilanguage | 7.6.0.1023 ( 2022/1/24 ) | VROC driver 档案大小 : [ 28590 KB ] | |
| WinFast GS2040T | |||
|---|---|---|---|
| 语言 | 版本 | 描述 | |
| User's Manual | |||
| English | A ( 2022/6/1 ) | User's manual 档案大小 : [ 56534 KB ] | |
